MODEL PARAMETERS

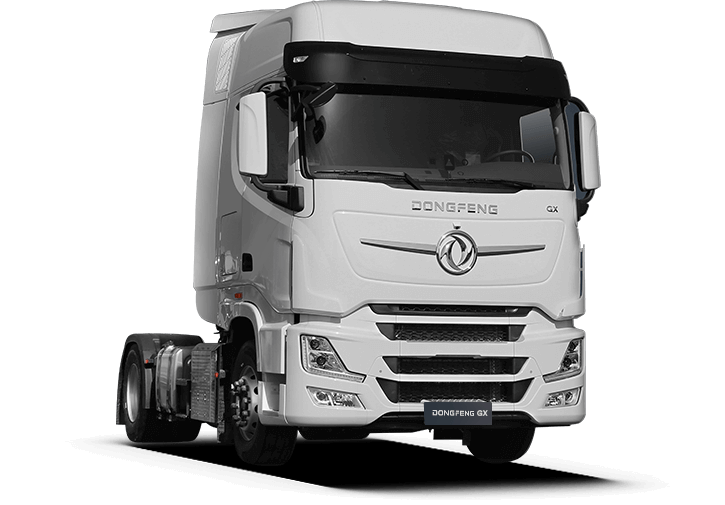

| GX TRACTOR |
| Model Version |
DFH4180-HA40 |
| Basic parameter |
| Chassis Dimensions (mm) |
6360 (L)x2550 (W)x3960 (H) |
| Wheel Base |
3800 |
| F/R Overhang |
1480/1080 |
| Weight (kg) |
| G.V.W |
18000 |
| Curb Weight |
8440 |
| Engine |
| Type |
Z14EVID520 (Cummins) |
| Emission Standard |
Euro Ⅵ |
| Rated Power (HP) |
520 |
| Maximum Torque (N·m) |
2500 |
| Number Of Cylinders |
6 |
| Displacement (L) |
13.5 |
| System |
Water-cooled ·Supercharged Inter-cooled ·High-pressure common rail fuel system ·DOC ·DPF ·SCR ·ASC |
| Clutch |
| Type |
SACHS 430 |
| Operating System |
Pull type, hydraulically operated with air assist |
| Gearbox |
| Type |
ZF12TX2620 AMT |
| Gear |
12 forward & 4 reverse gears，with synchronizer |
| Gear Ratios |
16.688,12.924,9.926,7.688,5.895,4.565,3.655,2.831,2.174,1.684,1.291,1,15.53 |
| Brake System |
Air brake system ·Rear axle spring parking brake ·Disc brake system ·Engine brake system ·Automatic emergency braking system ·Anti-skid system ·Vehicle stability system ·Tire pressure monitoring system ·lane departure warning system ·front collision warning system ·hydraulic retarder |
| Cab |
| Cab |

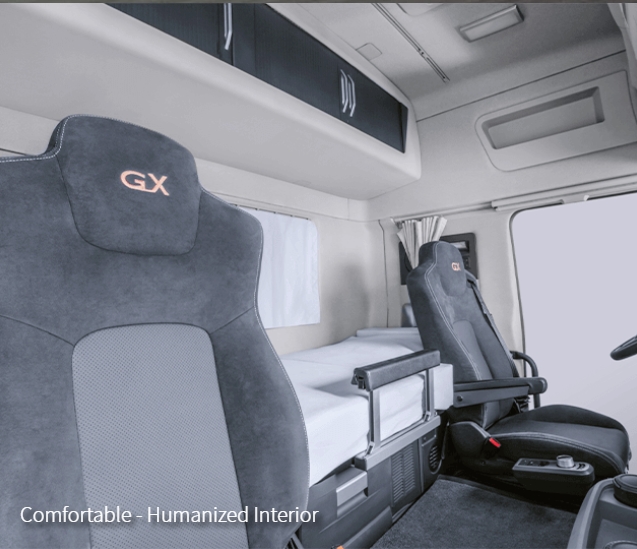

High-roof two-bedroom ·fully welded steel electric flip cab ·airbag suspension ·adjustable driver's seat ·automatic air conditioning ·electric windows ·central locking ·parking heater ·refrigerator |
| Axle |
| Front |
Ends fist,Ⅰsection. Maintenance free wheel ends, Load capacity 7(ton) |
| Rear |
Single reduction ·tandem axle ·with axle lock ·ratio 2.69 ·FAG Maintenance free wheel ends ·Load capacity 13(ton) |
| Tyre |
315/70 R22.5，steel rims |
| Suspension |
| F/R Overhang |
2 taper leaf spring/TAS |
| Fuel Tank |
| Type |
Aluminum alloy fuel tank with lock、 |
| Capacity |
850L (main) + 300L (auxiliary) |
Remarks:
① "●"indicates that this configuration is available, "-" indicates that this configuration is unavailable. "〇" indicates an optional configuration, and "*" indicates functions vary from the configurations.
② The content of this configuration table is compiled according to the vehicle configuration status information at the time of release.ln order to better meet customer needs, Dongfeng continues to develop and improve vehicles. Some configurations and specifications of models sold in the market may be different from this configuration. For details, please consult Dongfeng authorized dealers. Any possible changes will be made without prior notice.
2500Max.torque (N·m)
520Rated power (HP)
2 Taper Leaf Spring/TASF/R overhangMODEL HIGHLIGHTS
