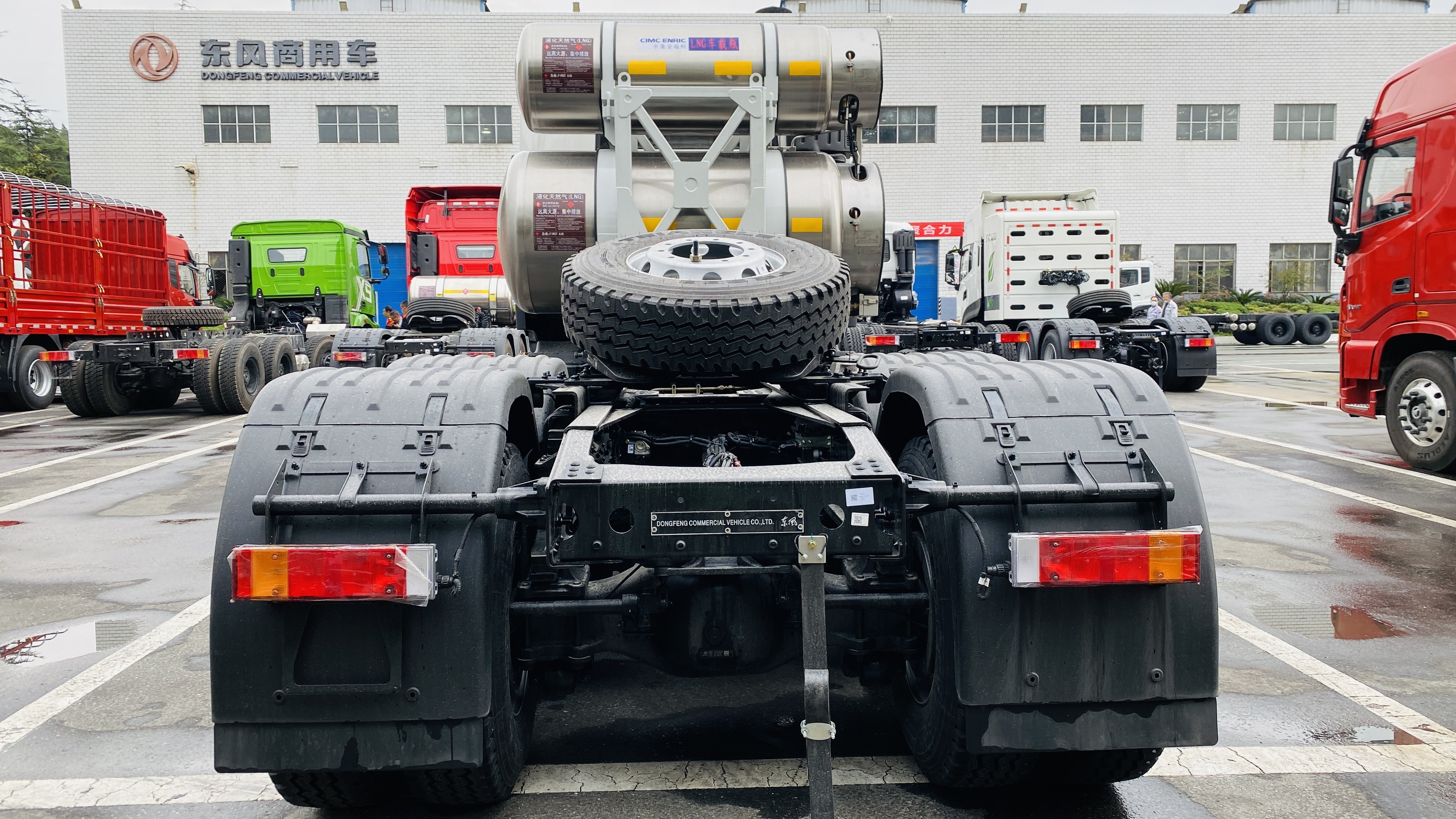

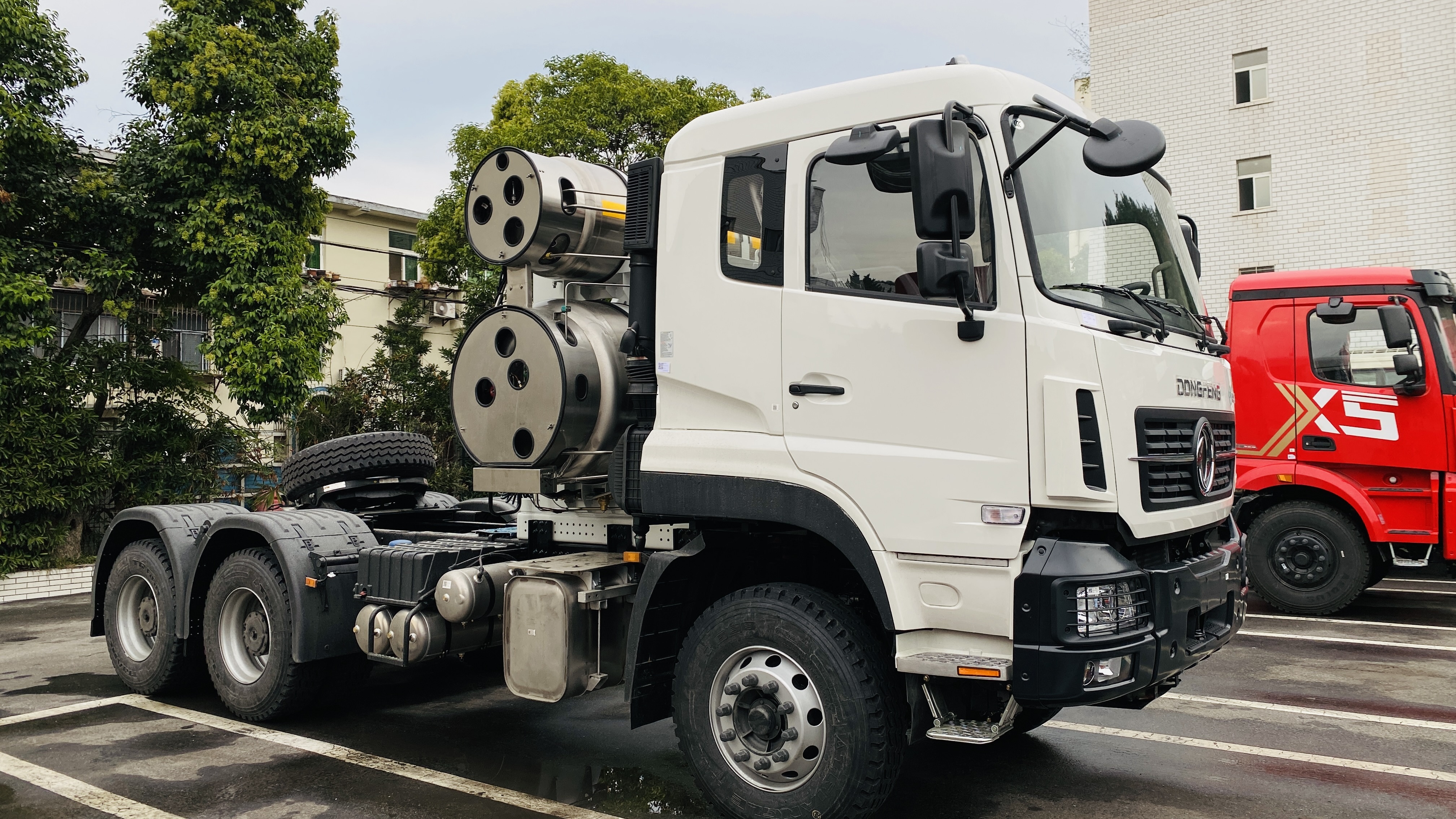

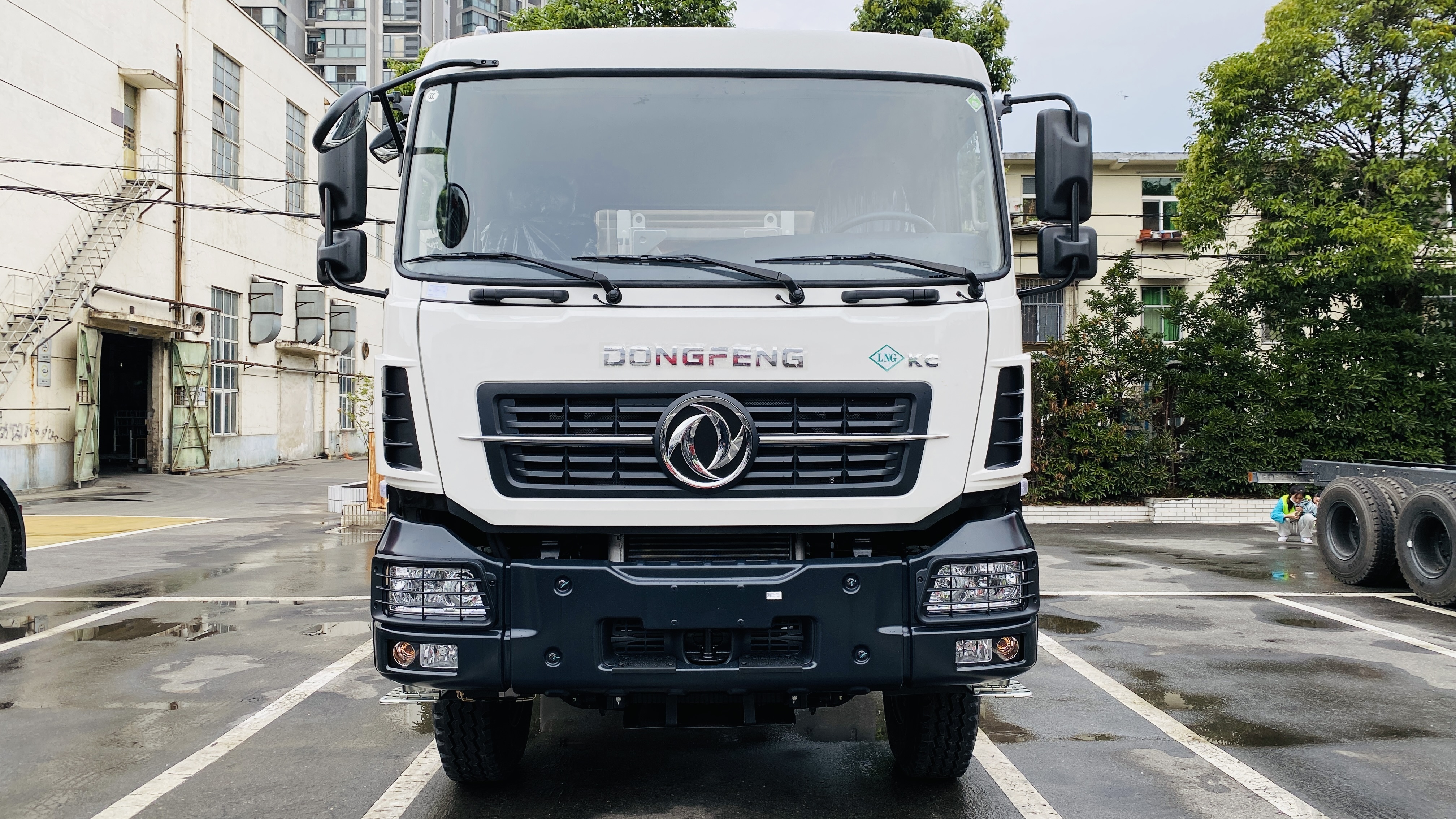

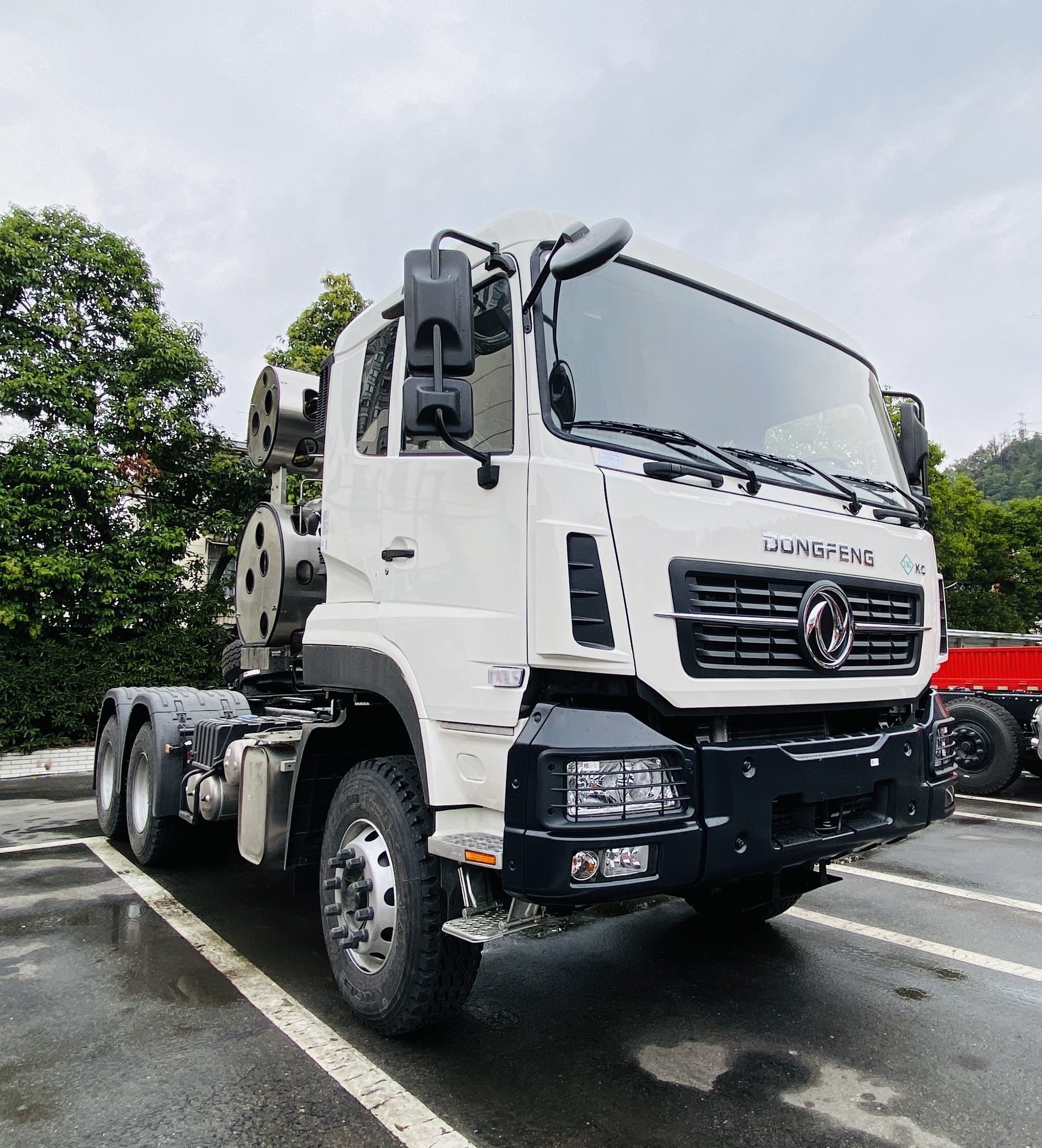

DONGFENG 6×4 LNG Tractor
| Product Name | EQ4250GD5D-T54KE-N5-221AY | |||
| Dimensions(mm) | 7600*2550*3850 | |||
| Wheel base | 3900+1350 | |||
| vehicle weights(kg) | ||||
| G.C.W | 85000 | |||
| Curb weight(vehicle) |
11600 | |||
| Engine | Type | YC6K1344N, Euro II, 324kW, 6 cylinders,Displacement 12.939L | ||
| Clutch | Plate's diameter | Hydraulic control with air booster, pulling,¢430mm | ||
| Gear box | Type | 12JSD200TA-B, 12 forward gears& 2 reverse | ||
| Brake System | Full air brake system, parking brakes, ABS. | |||
| Cab | KC Single sleeper, Front spring shock absorption, rear airbag shock absorption, Electric Tilt Cab |
|||
| Axle | Front | Load capacity(ton) | 9T | |
| Rear | Double stage reduction bridge, Ratio:4.77 | |||
| Load capacity(ton) | 20T | |||
| Tyres | 315/80 R22.5 18PR | |||
| Suspension | Front Suspension | Leaf spring 10 pieces | Rear Suspension | Leaf spring 13+13 pieces |
| Battery | Voltage (V) | 24 | ||
| Battery capacity (A.h) | 165 | |||
| Fuel | Type | stainless steel | ||
| Capacity | 2350(1350L+1000L)Lit | |||
